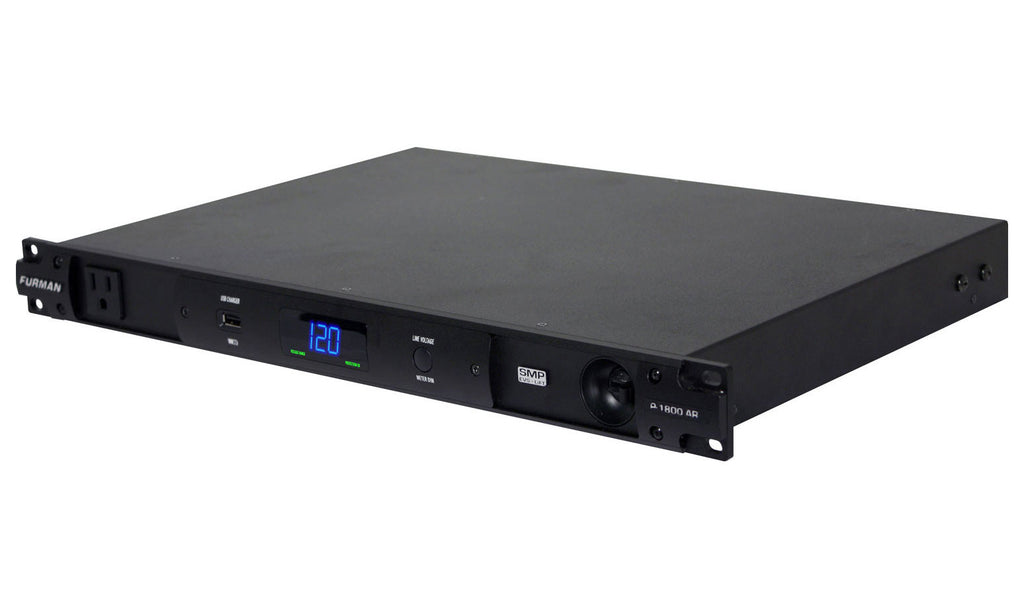

Furman P-1800 AR Prestige Voltage Regulator
Regular price $1,180.00
Furman P-1800 AR
The 15 Amp P-1800 AR delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities such as sags, brownouts, or overvoltages - all of which can cause sensitive electronic equipment to malfunction or sustain damage.
The P-1800 AR accepts input voltages over a wide AC voltage range and transforms it to a constant output of 120V, ±5V. Voltages beyond that range may also be converted to usable levels, depending on the range variance.
Additionally, the P-1800 AR is a full-featured power conditioner that filters and purifies AC power, reducing line noise and ensuring optimum performance. Not only will your equipment perform better with Furman’s Linear Filtering Technology (LiFT), but it will also be fully protected by our exclusive Series Multi-Stage Protection (SMP), and Extreme Voltage Shutdown (EVS). This circuitry provides the highest level of power protection available.
Furman P-1800 AR Features at a Glance
- Surge Protection
- Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.
- Noise Filtration
- LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
- Voltage Protection
- Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
- Diagnostic Lights
- LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
- True RMS Voltage Regulation
- True RMS Voltage Regulation delivers a stable 120 volts of AC power to protect equipment from problems caused by AC lne voltage irregularities.
- USB Charger
- Front panel USB convenience outlets allows you to charge most media devices or power a USB lamp.

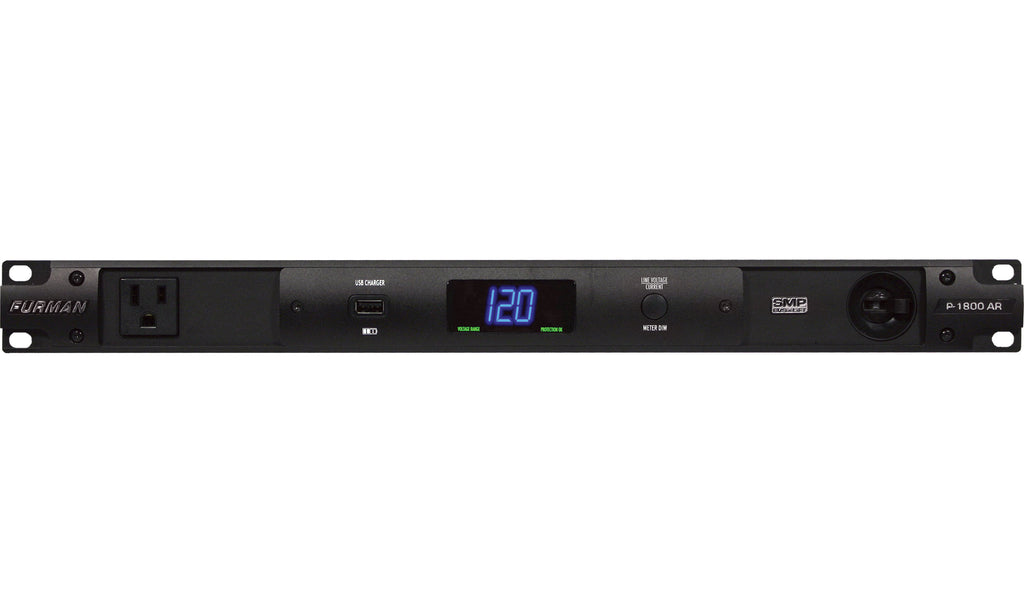

- Voltmeter / Ammeter
- Large digital voltmeter / ammeter, with discrete dimmer button, displays line votlage and true RMS current draw.
- Isolated Banks
- Isolated outlet banks minimize inter-component interference and noise contamination.
- Wall Wart Spacing
- Three widely spaced outlets accommodate bulky AC power transformers.
- 15 AMP Rating
- 15 Amp rating featuring a high inrush magnetic circuit breaker for added protection.

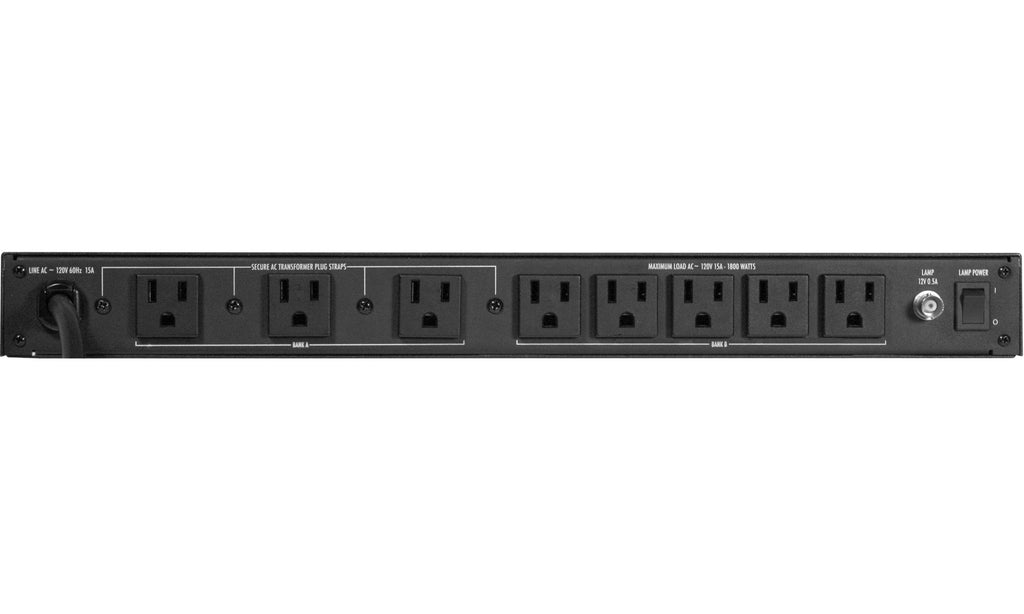

- Nine Total Outlets
- Nine total outlets (8 rear panel outlets and one front panel convenience outlet).
- BNC Lamp Connector
- Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.
- FamilyPrestige Series
- Line Voltage120 (Volts)
- Number of Outlets9
- Number of Isolated Banks2
- Outlet DescriptionsAll 9 outlets regulated and conditioned - 8 on the rear panel and 1 on the front
- Rack MountableYes
- Rack Ears IncludedYes
- Front Panel Meter(s)LED voltmeter/ammeter displays incoming voltage and output current draw
- Front Media Light(s)No
- On/Off switch
- Voltage meter dimmer button
Voltage RegulationRegulation capture range:
97 VAC to 137 VAC
- USB Charging1 front panel USB charger
- Low Voltage TriggerN/A
- AC Power Cord10 ft. captive 3/14 AWG, black cord with NEMA 15 plug
- Dimensions19" W x 12.0" D x 1.75" H
- Weight15 lbs
- Power Consumption5 Watts
- AC Protection
AC Protection TechnologyTrue RMS Voltage Regulation
Extreme Voltage Shutdown
Series Multi-Stage Protection
Non-sacrificial protection with zero ground contamination
- Under-Voltage Shutoff90V
- Over-Voltage Shutoff140 VAC
- Maximum Current Rating15 (Amps)
- Initial Clamping Level188 VAC peak @ 3,000 Amps
- Filtration TechnologyLiFT
Filtration Rating10 dB @ 10kHz
40 dB @ 100kHz
50 dB @ 500kHz
- Signal Line ProtectionNo
- Shipping Info
- Length22.6 (Inches)
- Width16.6 (Inches)
- Height4.2 (Inches)
- Weight20.96 (Lbs)
- Unit of MeasureEach
- Master Pack Qty2
- Other Specifications
- BNC socket with switch for rear rack lamp:12VAC 500mA max (lamp not included)
