Focal Alpha 80 studio monitor

Regular price $499.00

Focal Alpha 80 Powered studio monitor (price per speaker)

Flagship of the line, the monitoring loudspeaker Alpha 80 is particularly ideal for producing music which is rich in bass or which requires high power reserves.

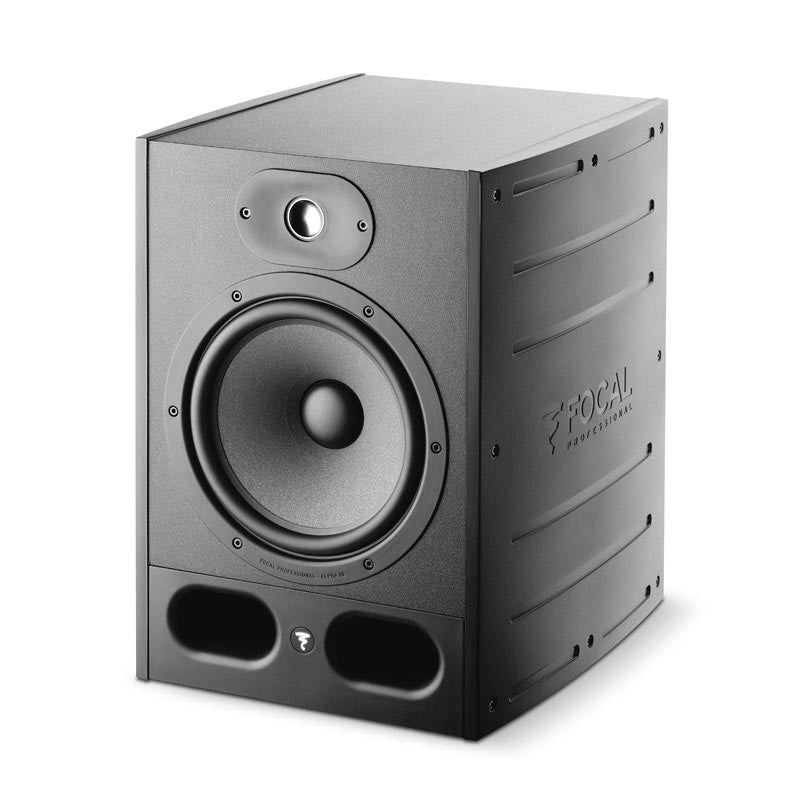

This model is composed of a 8” (21cm) woofer/ midrange speaker with a Polyglass cone loaded in a large laminar port and of a 1" (25mm) aluminum inverted dome tweeter. It features a 40W amplifier for the tweeter and a 100W amplifier for the woofer, and has a frequency response of 35Hz to 22kHz (+/- 3dB).

KEY POINTS

  • Low directivity: keeps the same sound throughout the room.
  • Damping and rigidity: neutrality, no distortion.
  • Tonal balance is identical at low and high volumes; low sensitivity to the wall effects.
  • Connect up to 2 audio sources.
  • Optimal acoustic integration.
  • Reduced power consumption.

Type

Monitoring Alpha 80

Frequency response (+/- 3dB)

35Hz - 22kHz

Power

140W (100W+40W)

Maximum SPL

109dB SPL (pic @ 1m)

Electronic section

Inputs Connectors

XLR balanced 10kOhms
RCA unbalanced 10kOhms with sensitivity compensation

LF amplifier stage

100W, class AB

HF amplifier stage

40W, class AB

Standby mode Standby

Activation of the monitor

After about 30 minutes without using the monitor By signal detection >3 mV

Power supply
(The voltage can not be modified)

220-240V
(fuse T1.6AL/250V) or 100-120V
(fuse T3.15AL/250V)

Connection

IEC inlet and detachable power cord

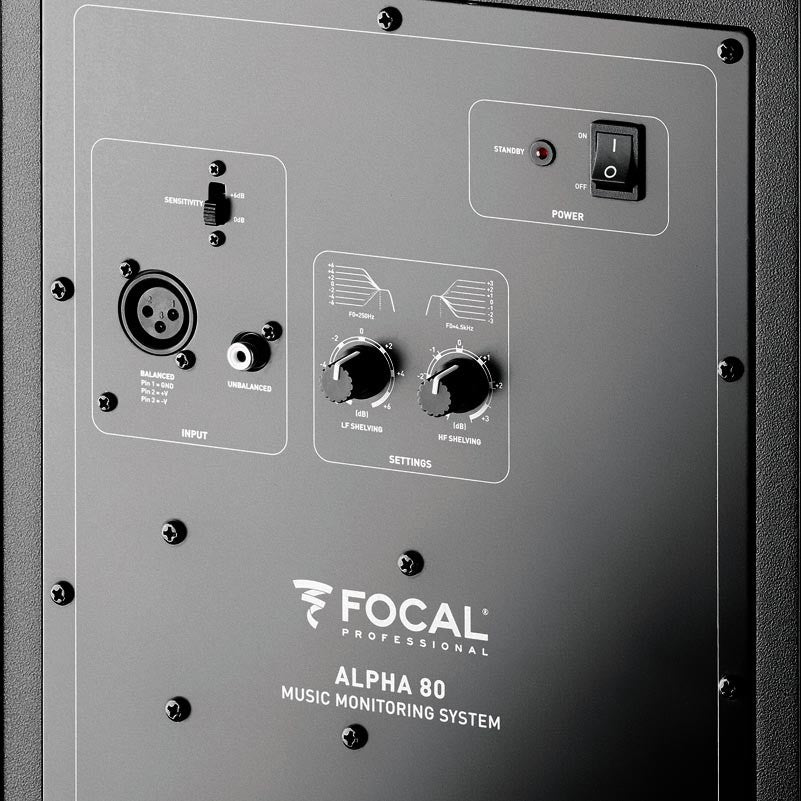

User controls

Sensitivity

Adjustable, 0 or +6dB

LF shelving (0 - 300Hz)

Adjustable, +/-6dB

HF shelving (4.5 - 22kHz)

Adjustable, +/-3dB

Power ON/OFF

Switch on rear panel

Standby mode power consumption

< 0,5W

Indicators

Power ON/OFF LED - Standby LED

Transducers

Woofer

8" (21cm) drive unit - Polyglass cone

Tweeter

1" (25mm) drive unit. Aluminium inverted dome

Cabinet

Construction

0.6" (15mm) MDF

Finish

Vinyl and Black painting

Dimensions
with 4 rubber pads (HxWxD)

15.6x11.3x13.7" (397 x 287 x 348mm)

Weight

28.2lb (12.8kg)
