Dirty Haggard Audio DH-2 DEATHFUZZ

Regular price $155.00

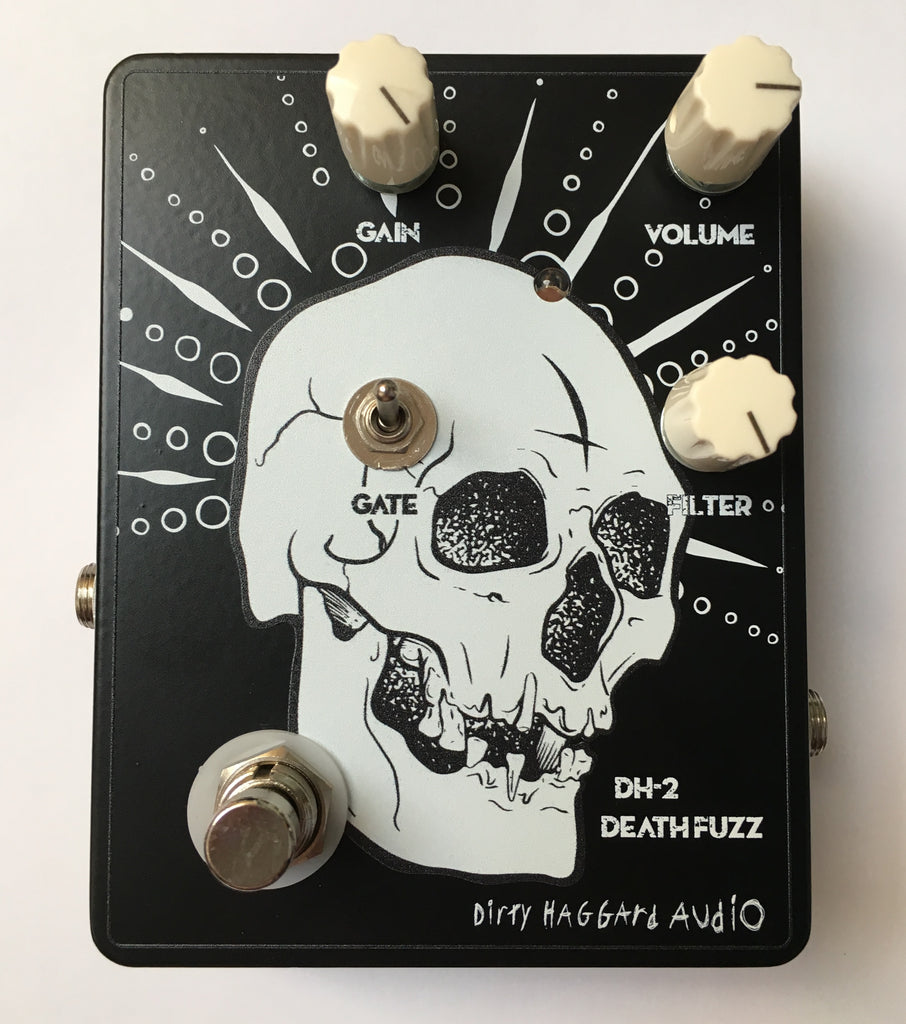

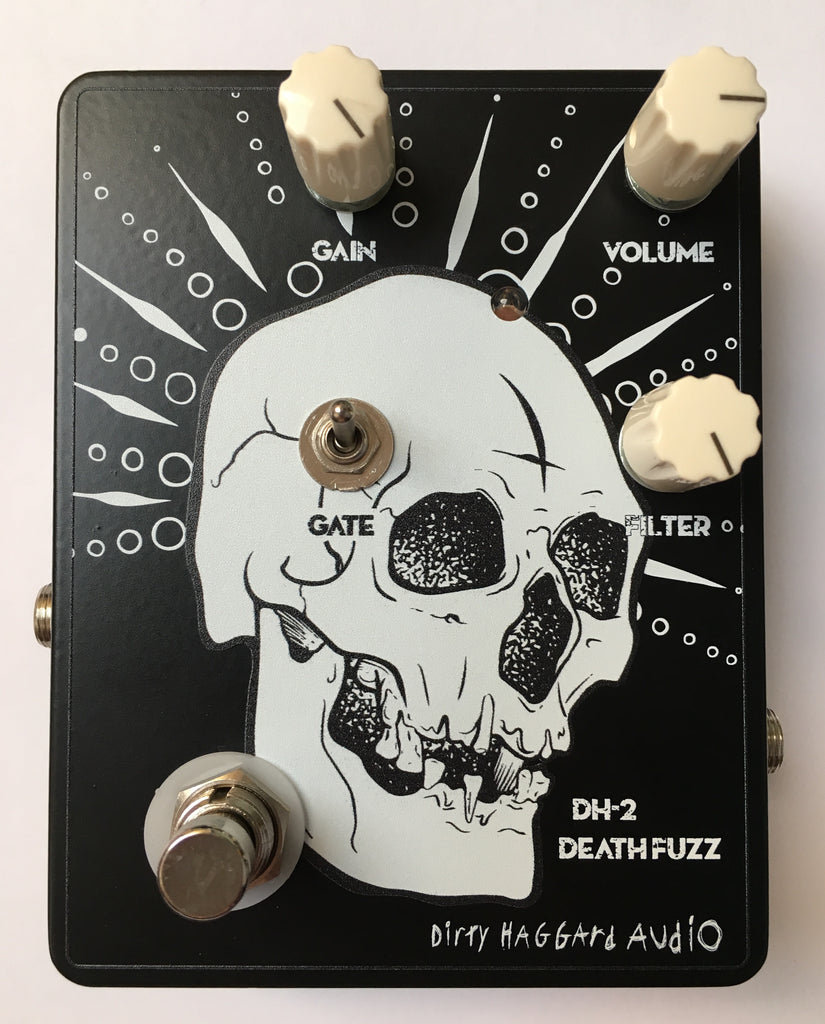

Dirty Haggard Audio DH-2 DEATHFUZZ

Savage Fuzz pedal. Destroys all input sources in an in your face style. Adds some sustain for a ghostly tail on some sounds. Has a gate toggle so you can gate the feedback noise.

Sounds great on Drum machines and synths

Added Noise Gate

The Companion Fuzz (as is the case with most fuzz pedals) was known to have a loud noise-floor/lots of hiss. The Death fuzz has a toggle switch to kill the hiss and noise without affecting sound quality. The result is silence when not playing or during breaks within your riffs. Or you can toggle the gate off for the classic vintage feel.

Filter Control

IThe original Companion Fuzz pedal had a hard-wired band-reject filter, resulting in a constant midrange scoop.  The Death Fuzz features a unique filter design which changes the overall character of the sound across the whole frequency spectrum, giving you much more tone control while retaining the feel of the original

Power Supply Filtering

Aggressive low-pass filtering of the DC power supply for maximum noise and ripple rejection.  Made with high quality electrolytic and ceramic capacitors which are rated for much higher voltage applications.  The result is minimal wear and tear on these capacitors over time, ensuring decades of quiet operation.

Added Output Amplifier

The added output amplifier corrects the originals low output signal, with the added benefit of having a much more agreeable 10k ohm output impedance so it will play nicely with your other effects pedals.

Redesigned Gain Circuitry

The original gain structure pitted two out-of-phase transistors against each other through a variable resistor(gain pot).  This added to the low-output volume problem of the pedal and produced a limited range of function.  The redesigned gain structure keeps out-of-phase signals from clashing with one another, giving you a much wider range of function, from a 'voltage starved' sound when used with the gate, to full brutality with or without the gate.

Radio Frequency Rejection

2-stage RFI/EMI input filtering prevents radio frequencies from entering the circuit so you don't have any annoying radio pickup coming out of your amp.

Quality Circuit Boards
