Demo Antimatter Launch Codes

Sale price $215.00 Regular price $229.00

Antimatter Launch Codes

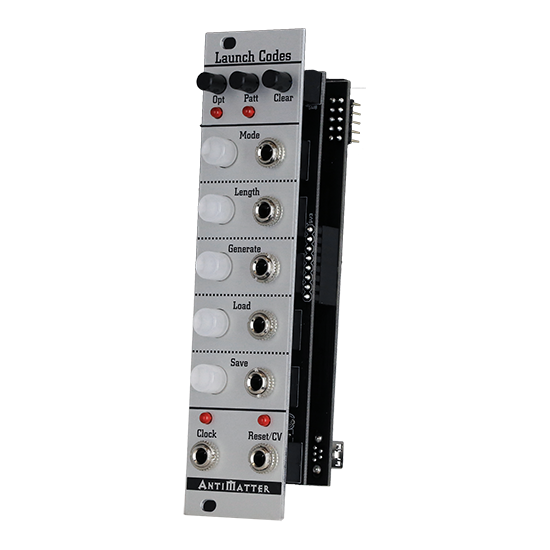

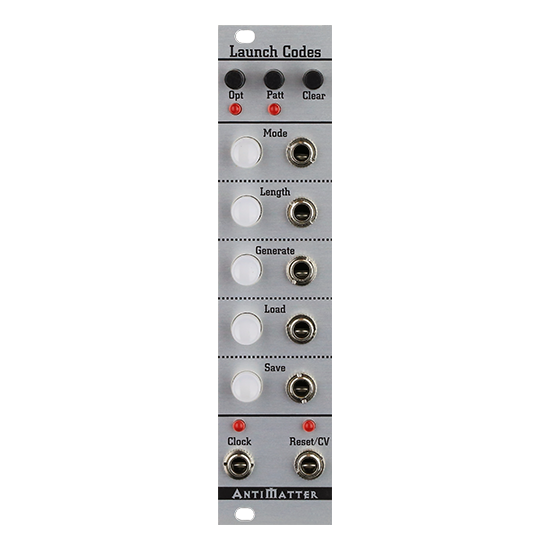

The Launch Codes is a compact modular performance source for manual or sequenced triggering and gating of five separate channels.

Controller mode:

The Launch Codes functions as a realtime manual performance switch controller providing trigger, momentary gate, or latched/toggle gate voltage outputs, selectable per each of the five channels. The settings and states of these channels can be saved and recalled.

Sequencer mode, chains, CV:

The Launch Codes also acts as a clocked performance sequencer for five trigger/gate events. Sequences are up to 32 steps long for each of the 5 patterns, for a total of 320 steps (20 bars). Recording is always enabled, and sequences are entered by tapping or holding the channel buttons.

Patterns can be expressively chained in the order pressed (3­2­4, 4­1­5, etc…). Launch Codes will continually loop through this chain, or a single pattern.

A reset port is provided to reset the sequencer to the first step. A special CV address mode allows the reset port to address the sequence directly through external voltage to modulate the sequence position. The clock input can be combined with the CV input to generate stuttered, glitchy beats, or to mimic more subtle fills, rolls, and accents.

All settings and sequences can be stored in internal memory for future use after power off. The Launch Codes can recall the internal memory at any time.

  • 6hp

  • Fast performance ­oriented interface

  • Controller mode with 5 channels of trigger, momentary gate, and latched gate modes

  • Sequencer mode with 5 channels of trigger or gate sequencing

  • 5 32-­step patterns

  • Smart pattern chaining loops pattern chains in the order pressed

  • Saving and recall of all settings, patterns, pattern chain, and controller states

  • Pattern randomizer weighted by how quickly the random button is tapped

  • Easy clearing of channels or whole patterns

  • Reset port to synchronize the sequencer with other devices

  • CV scrub mode turns the reset port into a CV address port to modulate the sequence position

  • Provide triggers to envelopes or drum modules, use as a programmable

  • clock divider, progress voltage sequencers (like the Brain Seed), latch VCAs or switches to provide structure to a multi­voice patch, etc…
